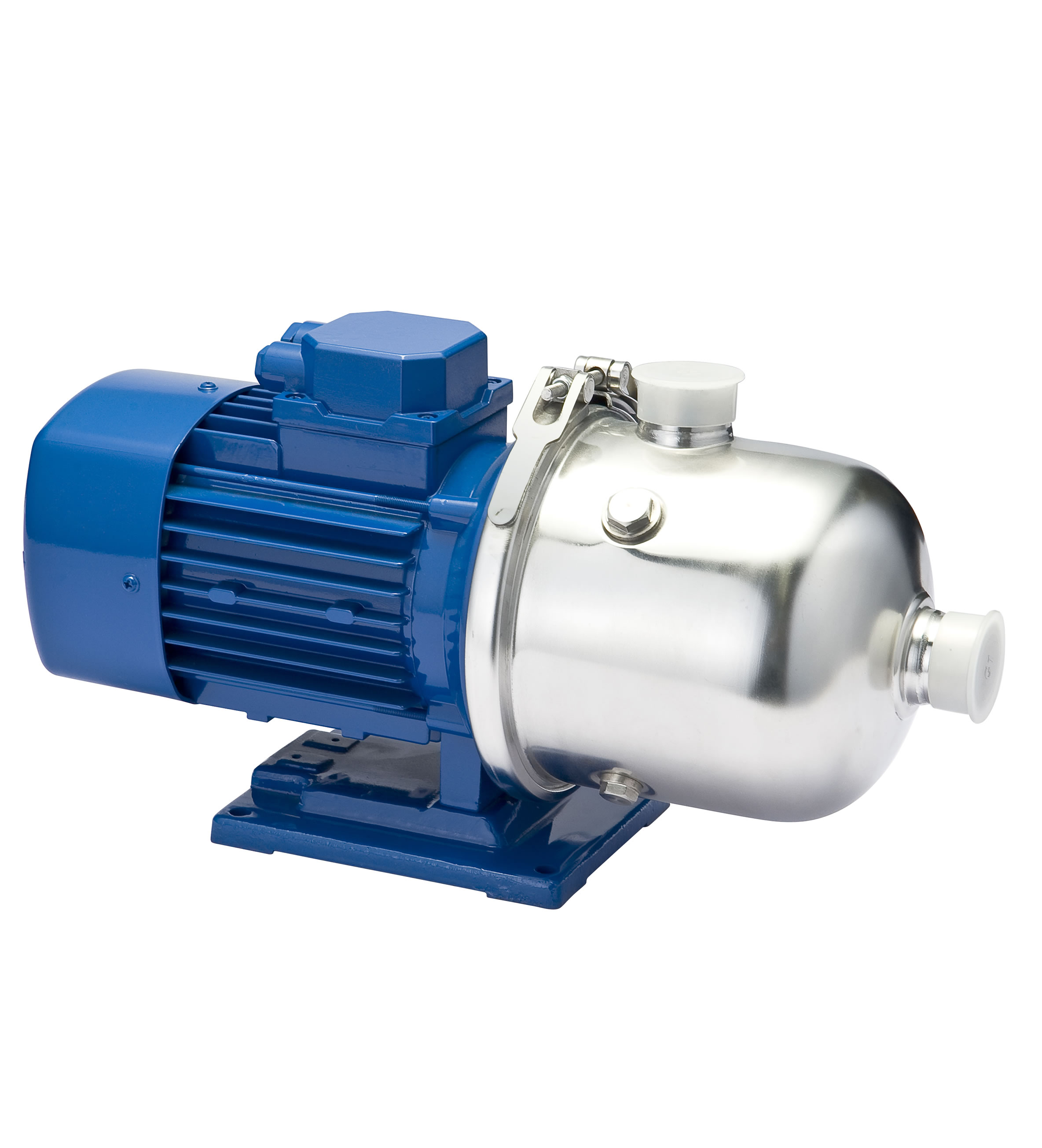

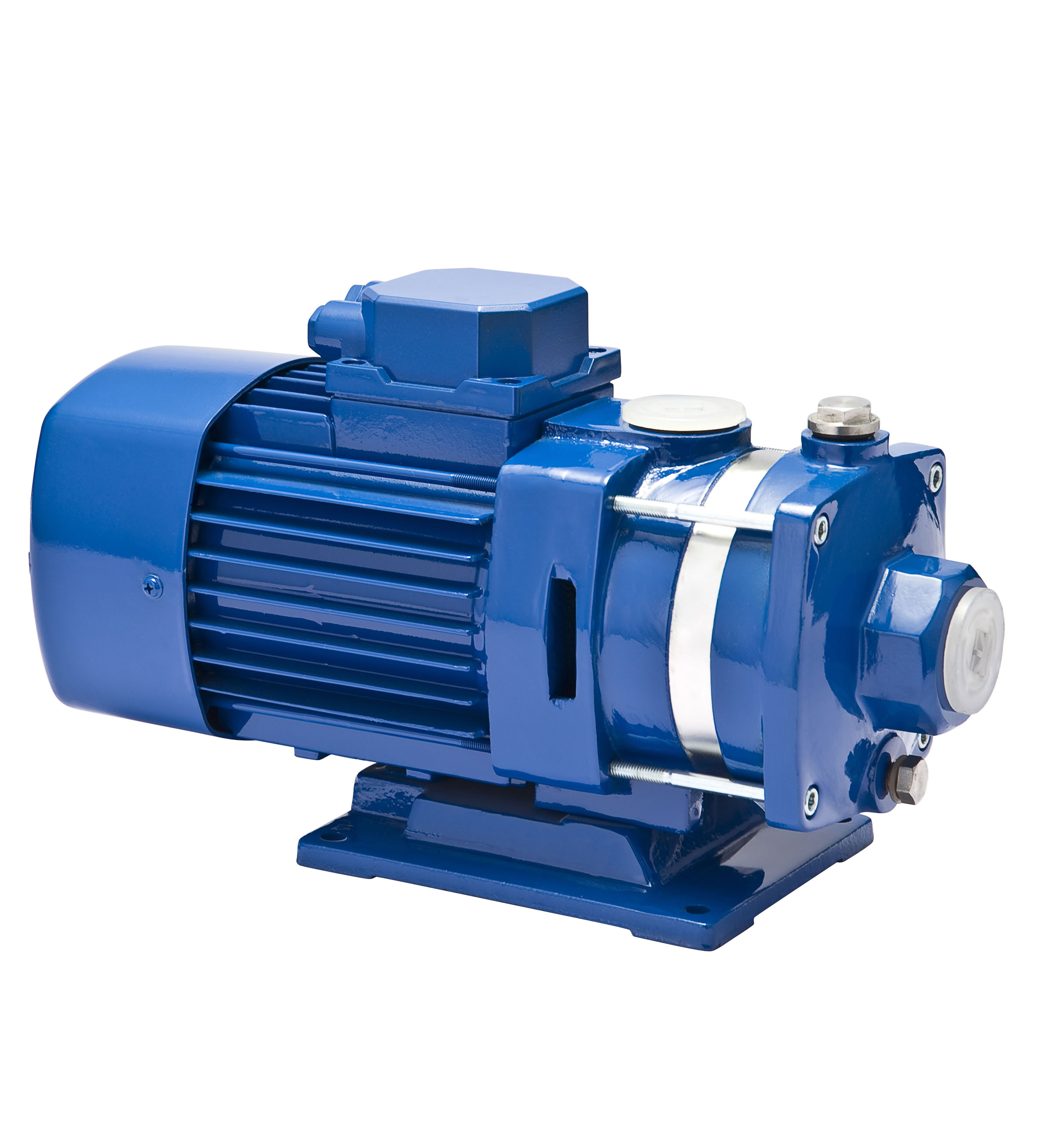

FFC ES Series Horizontal Multistage Centrifugal Pump
Non-self -priming, horizontal multistage centrifugal pump. FFC ES Series can be used in applications of pumping of thin, clean or slightly contaminated liquids without abrasive solids. The pump is directly coupled with a 3-phase AC motor.
Technical parameters
Standard: Q:0~180m3/h H:0~300m
Seal type: Shaft Seal
Impeller: Stainless Steel
Pump housing: Stainless Steel
ISO9906 Curve Tolerance
Maximum Ambient Temperature: 40 OC
Maximum Operating Pressure: 16 Bar
Liquid Temperature Range: 0~120 OC
Volute: Double Volute
